UVent®Hood Type

Description

Air quality is a significant concern forthe public, and many locations require effective emission controls in theirexhaust systems to comply with increasing environmental standards.

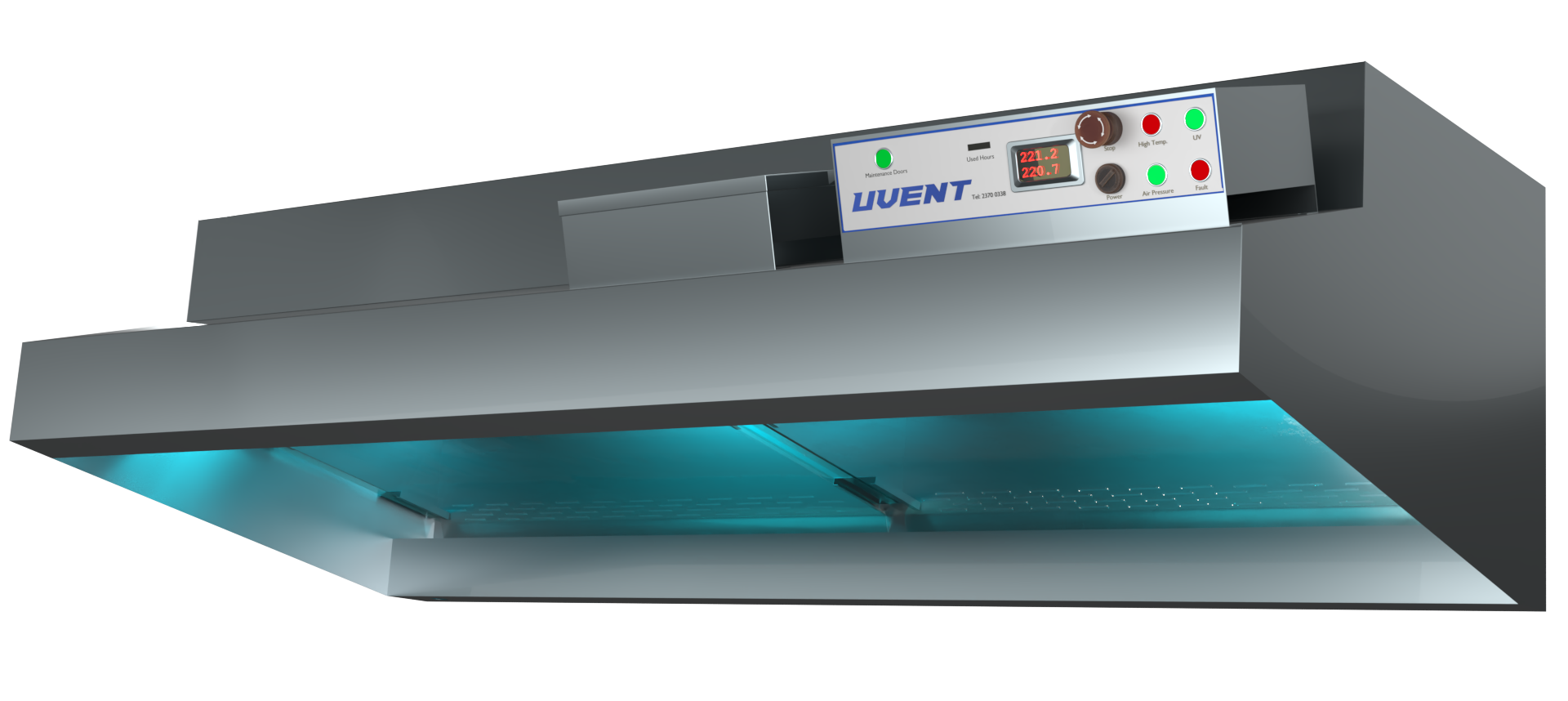

The UVent® Hood Type, part of the UVent®series, is specifically designed for commercial kitchens. It incorporates theadvanced Treatment Core, leveraging photolysis and photocatalysis technologiesto break down pollutants such as odors, grease, and organic compounds releasedfrom the premises. These pollutants are transformed into water vapor, achievingoutstanding purification results without the need for additional equipment.

By periodically replacing the TreatmentCore, the ductwork can remain nearly grease-free, significantly mitigating theimpact of odors and grease emissions. This not only reduces operational costsbut also greatly minimizes the risk of fire, ensuring safer and more efficientoperations.
- Suitable for Commercial Kitchen

- All Welded Stainless-Steel Design

- 18 Gauge 304 Stainless Steel

- Compatible with most Air Duct

- Recommended Minimum Duct Size: 400*300 mm

- Certified by Hong Kong EPD

- Certified by Hong Kong EMSD

- Certified removal rate by HK accredited laboratory

- UV tube(s) lifetime: up to 10,000 hours

- Self-cleaning function: No manual cleaning is needed

- Can be integrated with UVent® IoT Platform

Specifications

Product Model

UVT – I5XX = Number of Tube(s)

Number of UVC Tube(s)
6-32
InternalSize (L*W*H) (mm)
(as below)
- Length (L)
900 – 4500
- Width (W)
900 – 1100
- Height (H)
560 – 600
Power (W)
1320 - 7040
Material
ANSI304; 18 gauge
Removal Rate: OilMists
85%
Removal Rate: TVOC
92%
Removal Rate: PM2.5/ 10
76%
Removal Rate: CH2O
85%
Air Resistance(P.A.)
10- 450
