UVent®Smart Ventilation System

Description

The UVent® IoT Platform developed under the incubation program of the Hong Kong Science and Technology Parks Corporation.

The remote service providesreal-time status data of backend equipment. If users encounter any operationalissues. Contact us for remote troubleshooting and diagnostics, reducingmaintenance costs for the users.

Also, the data logging service offers detailed reports, including metrics such as initial oil mist levels, final oilmist emissions, and ozone emission levels. Aiding clients during EnvironmentalProtection Department inquires.

Features

The primary functions of the UVent®IoT platform include:
- Collecting and processing air quality data before and after treatment

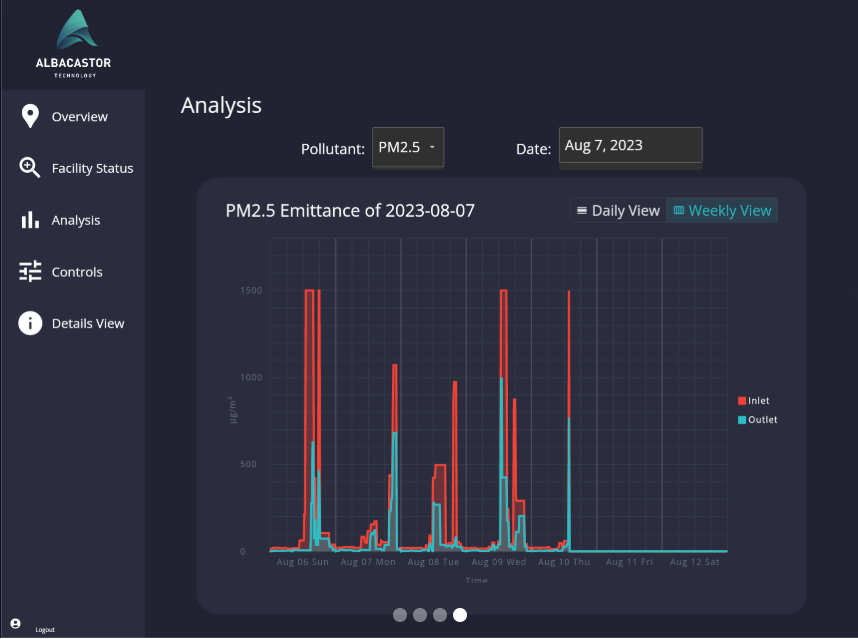

- Displaying data
- Enabling automatic/remote control of the entire system


The UVent® IoT platform can recordthe following pollutants:
- PM2.5
- Ozone
-
CH2O (Formaldehyde)
- TVOC (Total Volatile Organic Compounds)
- CO2 (Carbon Dioxide)

The UVent® IoT platform convertsodor and oil fume emissions into quantifiable data. This data can be providedto the Environmental Protection Agency and our clients, allowing them tounderstand the actual pollutant emission levels and the removal efficiency ofour equipment.

Specifications

Product Model

UVT – I5XX = Number of Tube(s)

Number of UVC Tube(s)
6-32
InternalSize (L*W*H) (mm)
(as below)
- Length (L)
900 – 4500
- Width (W)
900 – 1100
- Height (H)
560 – 600
Power (W)
1320 - 7040
Material
ANSI304; 18 gauge
Removal Rate: OilMists
85%
Removal Rate: TVOC
92%
Removal Rate: PM2.5/ 10
76%
Removal Rate: CH2O
85%
Air Resistance(P.A.)
10- 450

Since 2019, Albacastor has been producing products that treats oil fume emissions and ventilation systems for any situations along with an IoT system for easy monitoring.
